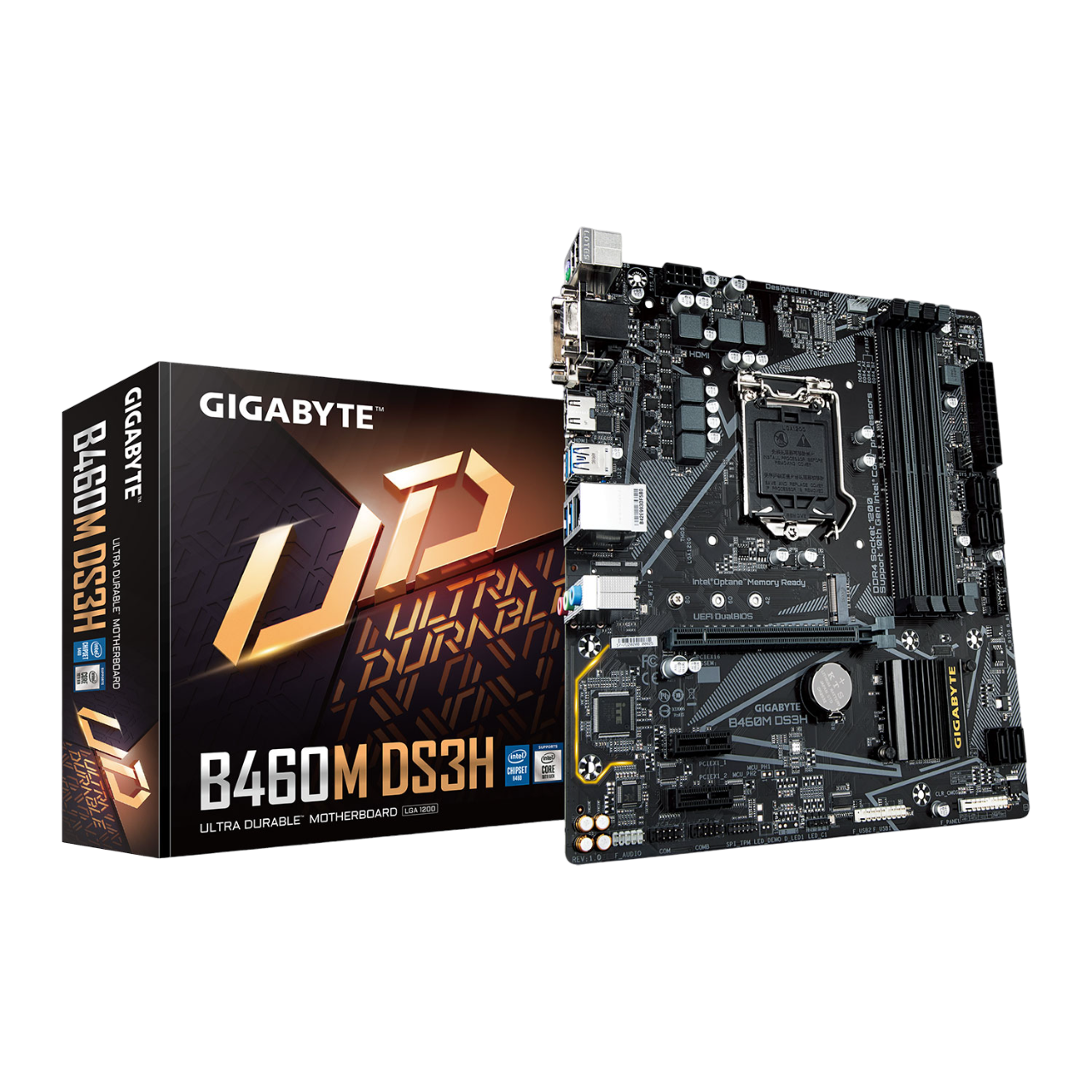

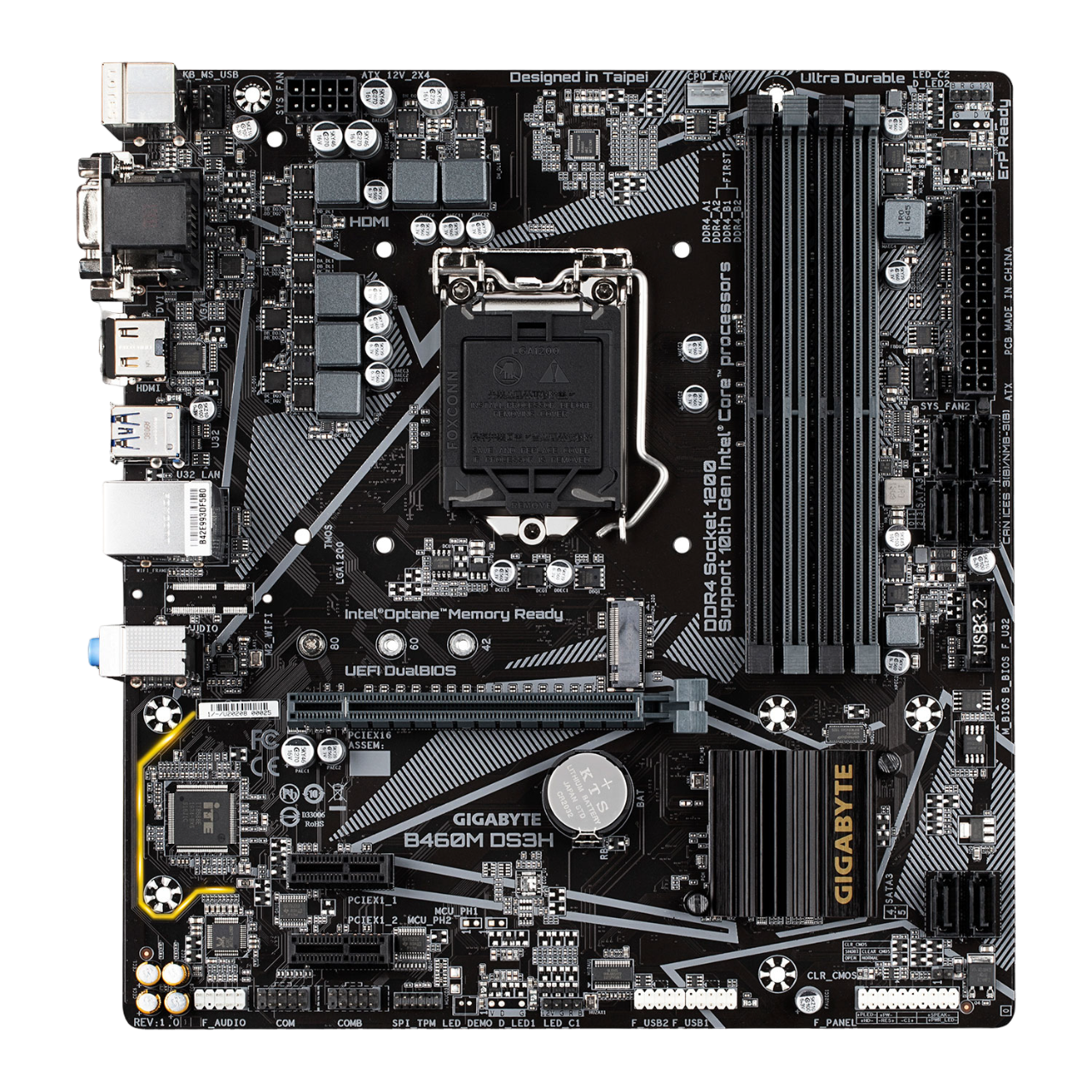

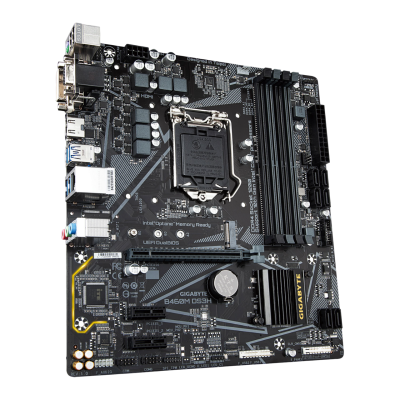

Motherboard Micro-ATX Gigabyte B460M DS3H (rev. 1.0) LGA1200

Processador:

Suporta Intel® Core ™ i9 10a geração/ Intel® Core ™ i7 / Intel® Core ™ i5 / Intel® Core ™ i3 / Intel® Pentium® / Intel® Celeron® no pacote LGA1200
L3 cache varies with CPU
Chipset: Intel® B460 Express Chipset

Memória RAM:

Intel® Core™ i9/i7
Suporta os seguintes módulos de memória DDR4 2933/2666/2400/2133 MHz
Intel® Core™ i5/i3/Pentium®/Celeron®
Suporta os seguintes módulos de memória DDR4 2666/2400/2133 MHz
Suporta 4 x DDR4 DIMM sockets até 128 GB
Arquitetura de memória Dual Channel
Suporta módulos de memória ECC Un-buffered DIMM 1Rx8/2Rx8
Suporta módulos de memória non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Suporta módulos de memória Extreme Memory Profile (XMP)
Slots de Expansão:

1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
Armazenamento:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Suporte para RAID 0, RAID 1, RAID 5, and RAID 10
LAN:

Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Áudio:

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Portas USB:

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Conectores I/O:

1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
1 x CPU fan header
2 x system fan headers
2 x RGB LED strip headers
6 x SATA 6Gb/s
1 x M.2 Socket 3
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x Clear CMOS jumper
Portas Painel Traseiro:

1 x PS/2 keyboard/mouse
1 x D-Sub
1 x DVI-D
1 x HDMI
4 x USB 3.2 Gen 1
2 x USB 2.0/1.1
1 x RJ-45
3 x audio jacks
Dimensões: Formato Micro ATX , 24.4cm x 22.5cm
