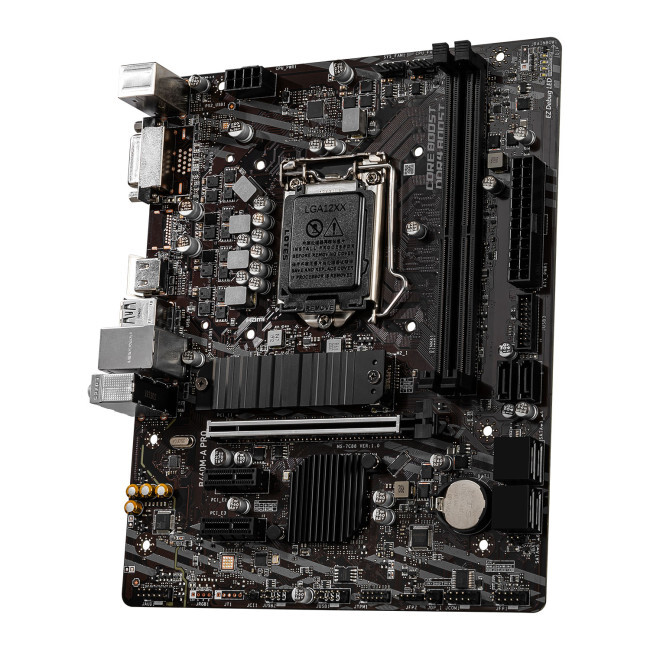

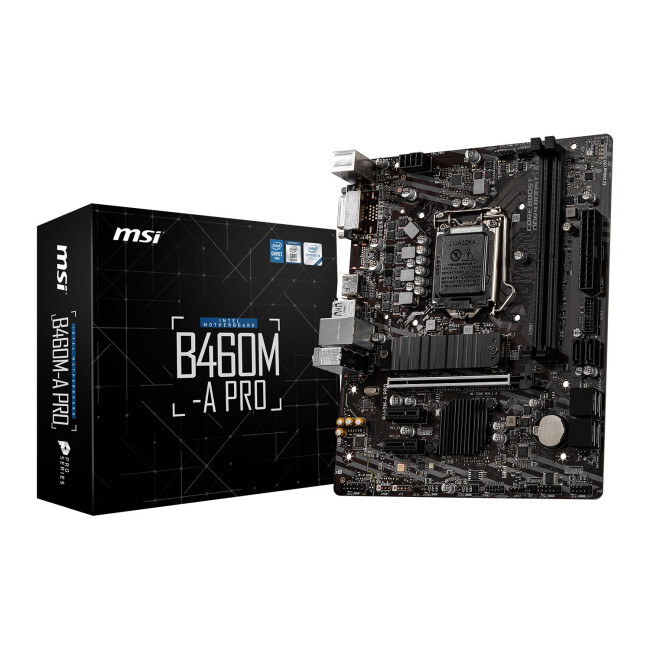

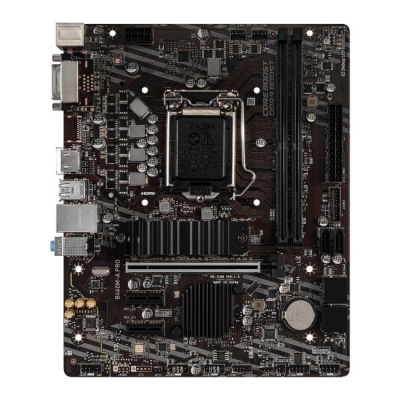

Motherboard Micro-ATX MSI B460M-A Pro LGA1200

Processador: Suporta processadores 10ª Geração Intel® Core™ e Pentium® Gold / Celeron® socket LGA 1200
Chipset: Intel® B460
Memória RAM:
2 x DDR4 memory slots, support up to 64GB
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Slots de Expansão:
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots
Áudio: Realtek® ALC892 Codec
LAN: 1 x Realtek® RTL8111H Gigabit LAN Controller
Armazenamento:
Intel® B460 Chipset
6x SATA 6Gb/s ports
1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors
Portas USB:
6 x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

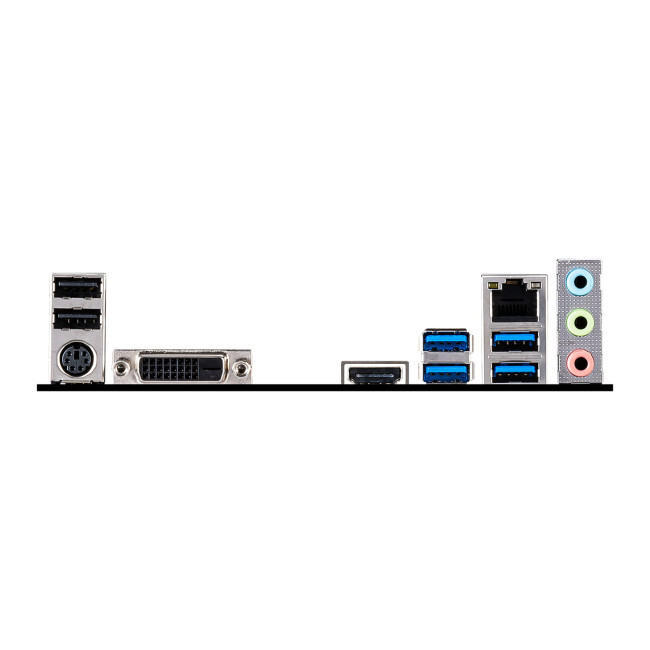

Portas I/O Painel Traseiro:
2 x USB 2.0 Type-A
1 x PS/2 combo teclado/rato
1 x DVI-D
1 x HDMI
4 x USB 3.2 Gen1 5Gbps Type-A
1 x RJ45 LAN
Jacks de áudio
Dimensões: Formato Micro-ATX, 23.6 cm x 19.2 cm
